Types of Compound Walls: Which Construction Method is Right for Your Site?

A compound wall is essential for defining property boundaries, ensuring security, and enhancing the aesthetic value of any building. However, the method of constructing a compound wall depends heavily on the soil condition, load requirements, and budget constraints. Below are the most commonly used types of compound wall construction methods, each with its unique advantages and suitable scenarios.

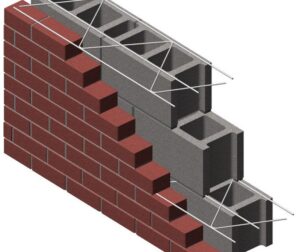

1. Conventional Load-Bearing Method (Economical Option)

This is the most cost-effective type of compound wall construction, especially if hard soil is encountered at shallow depth. The wall is typically built using brickwork or solid concrete blocks, starting with a wider base below ground level, tapering to an 8″–9″ wall above the ground. This method provides adequate strength and stability for standard residential boundaries without inflating the budget.

Best for:

• Sites with hard soil close to the surface

• Low-budget residential projects

• Quick and easy construction

2. Load-Bearing CR Masonry Method (Less Economical)

This method involves coursed rubble (CR) masonry, with the wall’s base having a wider width from the hard stratum to the ground level, and a narrower section above ground. This heavy masonry wall behaves like a retaining structure, offering high stability. Though more expensive than the conventional method, it is used when the soil support is strong at shallow depth and extra lateral stability is required.

Best for:

• Sloped sites requiring retaining action

• Locations with hard strata at shallow levels

• Long-lasting, robust boundary solutions

3. Pile Foundation Method (For Loose Soil Conditions)

When the soil is loose or weak, a pile foundation becomes necessary. Piles are driven into the ground to reach a stable layer, and a plinth beam is cast at the ground level. The compound wall is then built on top of this setup. Alternate piles can be extended vertically, acting as buttress supports, providing additional stability, especially where the wall must also function as a retaining wall.

Best for:

• Loose or marshy soil conditions

• Sites with poor bearing capacity

• Locations needing added stability against lateral forces

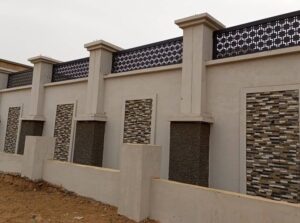

4. Framed Method (With RCC Columns and Plinth Beam)

If hard strata is available within 7 to 8 feet, the framed method is a suitable choice. This technique involves RCC footings and columns tied together with a plinth beam at ground level. Masonry panels are filled in between the columns. It is a widely used method offering a good balance between cost and durability.

Best for:

• Residential and institutional boundaries

• Moderate soil conditions

• Aesthetic designs with column-panel architecture

5. RCC Retaining Wall Method (High-End, Specialized Option)

When the compound wall also needs to retain water bodies or soil, especially in basements or lakeside properties, a full-length RCC wall is required. The construction involves a toe slab at the hard strata, and the RCC wall is extended to the desired height. This method is highly durable and watertight, but it comes at a higher cost due to materials and labor.

Best for:

• Retaining water bodies or heavy backfill

• Commercial or industrial sites

• Long-term durability and watertight design

Conclusion

Choosing the right type of compound wall depends on your site’s geotechnical conditions, functional needs, and budget constraints. From affordable conventional methods to robust pile or RCC wall techniques, there’s a suitable solution for every requirement. Consulting a qualified civil or structural engineer is essential to determine the best approach for safe and cost-effective construction.
